Precision PEEK Parts CNC Machining

Yes, PEEK can be CNC machined very effectively when the process is set up correctly. It is a high-performance thermoplastic known for strength, heat resistance, and chemical stability, making it suitable for precision components. Proper tooling, speeds, feeds, and workholding are important to control heat, maintain tolerances, and achieve clean edges and surface quality.

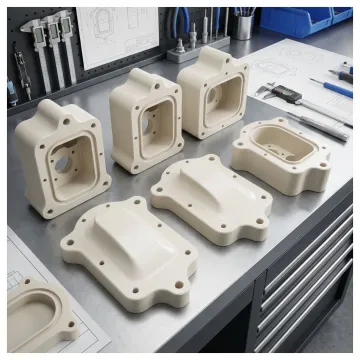

PEEK can be machined into a wide range of components, including bushings, spacers, housings, brackets, insulators, seals, and custom high-performance parts. It works well for both simple geometries and more complex features produced with 3-axis, 4-axis, or 5-axis machining. The right process depends on the part shape, tolerance requirements, and end-use environment.

PEEK is often selected for precision applications because it offers strong dimensional stability and excellent mechanical performance. Tight-tolerance machining is achievable, but success depends on part geometry, wall thickness, machining strategy, and thermal control during cutting. Experienced programming and proper setup help reduce distortion, maintain feature accuracy, and improve repeatability across prototype and production runs.

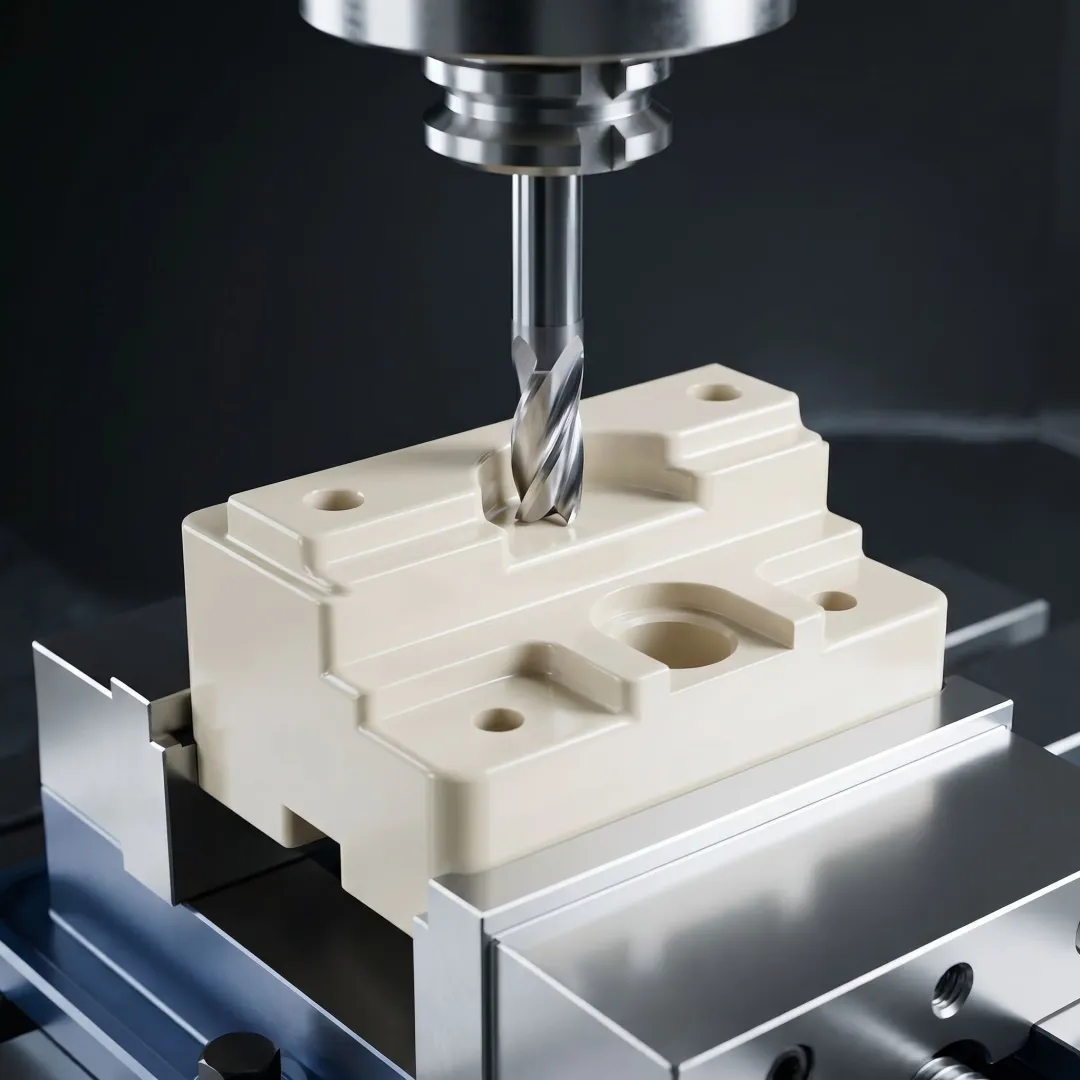

The best process depends on the part design. 3-axis milling is effective for pockets, holes, and flat features, while 4-axis and 5-axis milling are better for multi-side geometry, contours, and complex angles. Turning is ideal for cylindrical PEEK parts such as bushings and spacers. Secondary finishing like deburring can improve edge quality and final usability.

Yes, 5-axis machining is especially useful for complex PEEK parts because it allows the cutting tool to approach the workpiece from multiple angles in a single setup. This reduces re-fixturing, improves positional accuracy, and helps produce deep cavities, compound angles, and intricate contours. It is a strong option for demanding components where precision and surface consistency matter.

Many machined PEEK parts benefit from finishing, especially when burr removal, smoother edges, or improved appearance are important. Services such as vibe deburring can remove sharp edges and support better fit and handling. Bead blasting may also be used in some cases to create a more uniform surface appearance, depending on the part’s functional and cosmetic requirements.

Yes, PEEK is commonly machined for both prototypes and production quantities. Prototype machining helps validate fit, function, and performance before scaling, while repeat production benefits from consistent programming and process control. CNC machining is especially valuable when parts require precise features, specialized geometries, or lower-to-medium volumes where molded tooling may not be practical.

To request a quote, provide part drawings, CAD files, material grade requirements, quantities, tolerances, and any finishing needs. Information about the application environment can also help determine the best machining approach. Clear specifications allow the machining team to review complexity, recommend the right process, and prepare an accurate quote for prototype or production work.
