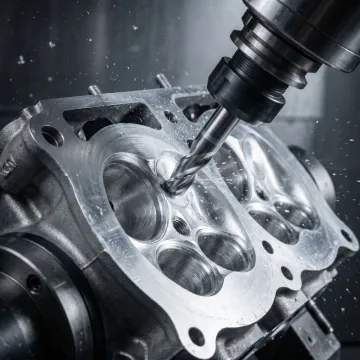

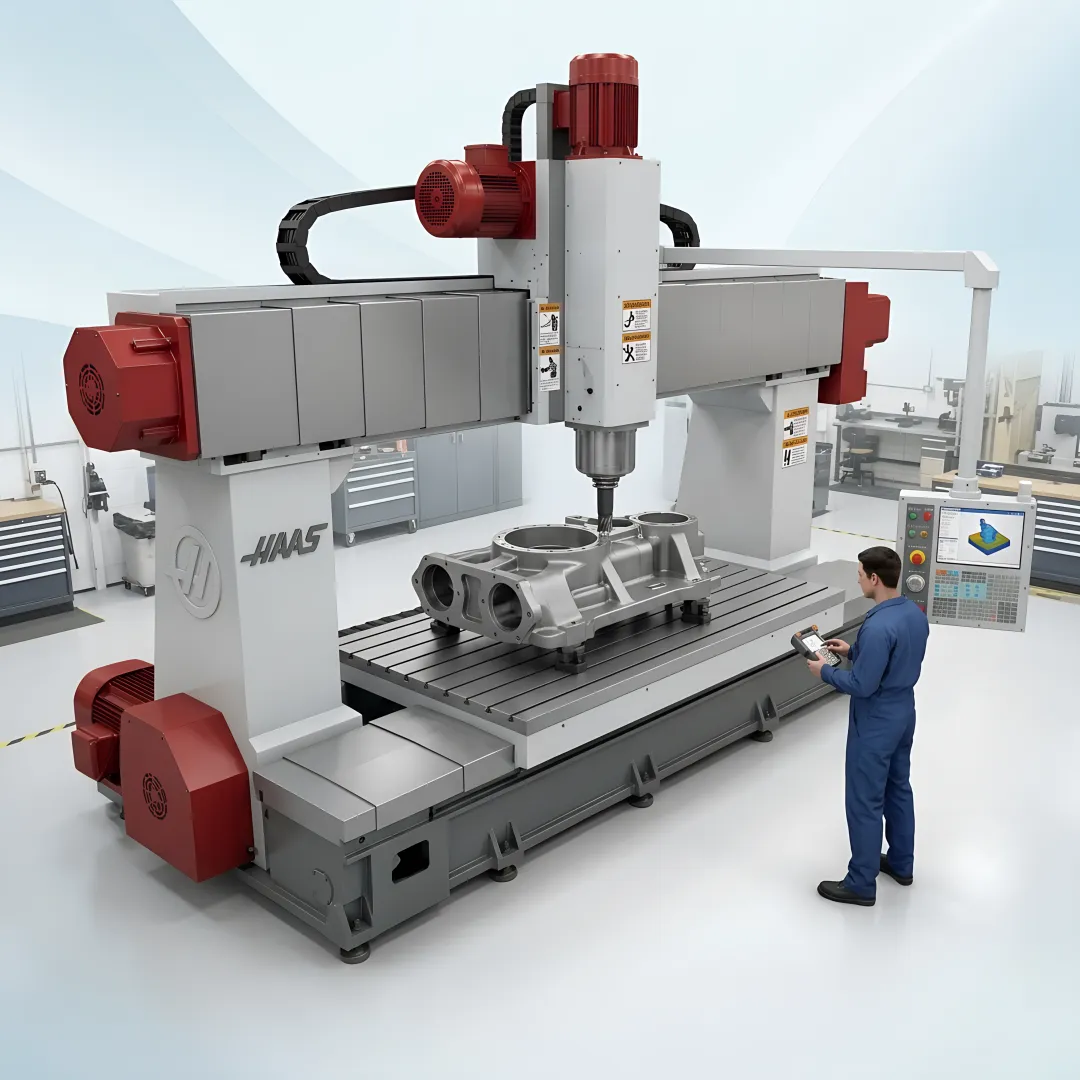

5 Axis CNC Cylinder Head Porting Machines

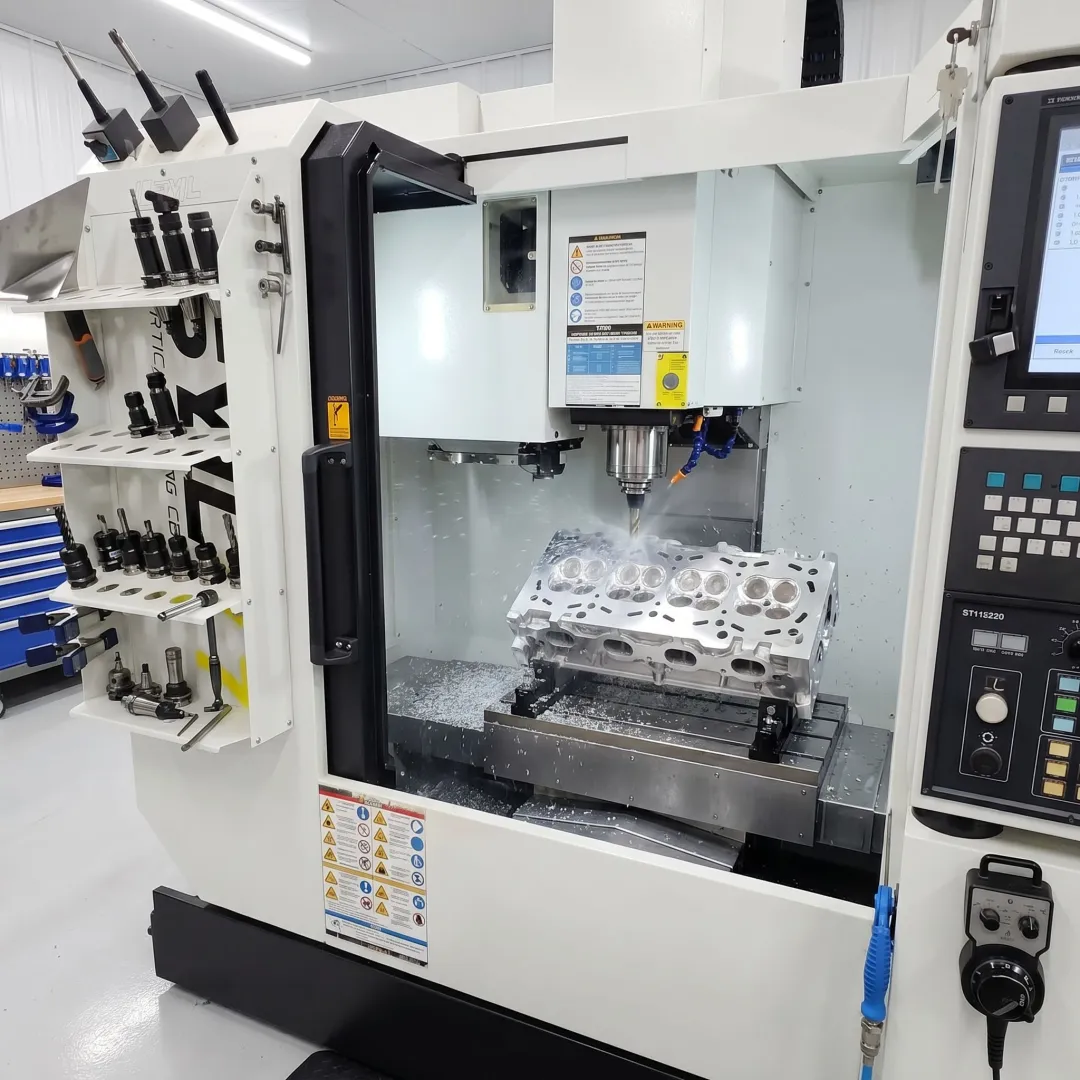

A 5 axis CNC cylinder head porting machine uses three linear axes and two rotational axes to move the cutting tool around complex port geometry. This allows the tool to approach intake and exhaust passages from multiple angles in a single setup, improving consistency, reducing repositioning, and supporting tighter tolerances on intricate cylinder head features.

5 axis machining is ideal for cylinder head porting because ports contain compound curves, deep passages, and hard-to-reach transitions. A 5-axis setup helps maintain accurate tool orientation throughout the cut, which improves repeatability, supports smoother surface finishes, and reduces the number of setups compared with simpler machining methods.

Yes. CNC porting helps produce repeatable port shapes and smoother transitions, which are important for airflow consistency across multiple cylinder heads. While final performance depends on the design itself, precise multi-axis machining reduces variation between parts and helps maintain the intended geometry from one production run to the next.

Cylinder head porting is commonly performed on aluminum heads, though other machinable metals may also be suitable depending on the application. Material type affects tooling strategy, cutting speeds, and finishing approach. CNC Programming Solutions uses precision machining practices to support accurate cuts, clean surfaces, and dependable results on demanding engine components.

Yes. In addition to machining support, CNC Programming Solutions offers finishing services including bead blasting, vibe deburring, anodizing, and powder coating. These services help remove burrs, improve surface appearance, and prepare parts for final use or additional production steps, giving customers a more complete manufacturing solution from one provider.

5 axis CNC machining is well suited for high-precision work because it minimizes re-fixturing and allows better tool access to complex surfaces. That combination helps maintain dimensional control and surface consistency on intricate port geometry. Accuracy also depends on programming quality, tooling selection, machine condition, and the specific design requirements of the part.

Yes. The company supports precision machining needs for customers ranging from specialized component work to broader manufacturing requirements. Multi-axis capabilities and finishing services make it possible to assist with prototype development, short-run jobs, and repeat production work where consistency, efficiency, and reliable machining quality are important.

You can request a quote by contacting CNC Programming Solutions with your project details, part requirements, and any available drawings or specifications. Sharing information about material, geometry, finishing needs, and production volume helps streamline review. This allows the team to assess machining scope and recommend the most suitable manufacturing approach.
