4-Axis CNC Horizontal Machining Centers

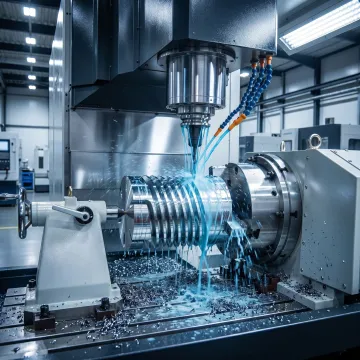

4-axis milling adds a rotational axis, commonly called the A-axis, to standard X, Y, and Z movement. This allows the workpiece or machine head to rotate during machining, making it possible to create features on multiple sides with fewer setups. It is especially useful for helical features, angled holes, wrapped engravings, radial details, and cylindrical components that benefit from improved accuracy and repeatability.

4-axis CNC horizontal machining centers are well suited for parts that require machining on multiple sides or around a cylindrical surface. Common examples include camshafts, impellers, curved slots, radial hole patterns, and components with wrapped or rotary features. They are also valuable for production parts where reducing re-fixturing helps improve consistency, throughput, and dimensional control across repeated runs.

3-axis machining moves the cutting tool along X, Y, and Z directions while the workpiece remains fixed in one orientation. 4-axis machining adds rotational movement, allowing access to additional faces or continuous rotary cutting without repeatedly removing and repositioning the part. That extra axis can reduce setup time, improve alignment between features, and make more complex geometries practical to machine efficiently.

Choose 4-axis machining when your part needs rotary access around one axis but does not require the full angular flexibility of a 5-axis setup. It is often the right fit for cylindrical parts, radial features, helical forms, and multi-side machining where one rotational axis is enough. For highly complex contours, undercuts, or compound-angle surfaces, 5-axis machining may be the better option.

Yes. CNC Programming Solutions offers finishing support that can help streamline production after machining is complete. Available services include vibe deburring to remove burrs and sharp edges, bead blasting for improved surface appearance, anodizing for protective finishing, and powder coating for durable coverage. Combining machining and finishing support can reduce handoff delays and simplify part completion for customers.

The main benefits include fewer setups, better feature alignment, improved repeatability, and more efficient machining of multi-side or rotary parts. By reducing the need to manually reposition components, 4-axis machining can lower handling time and help maintain tighter consistency across production runs. It also supports complex features such as angled holes, wrapped profiles, and continuous rotary contours more effectively than standard 3-axis milling.

Yes. 4-axis machining can support both prototype development and repeat production work. For prototypes, it helps validate complex geometries and feature relationships with fewer setups. For production, it supports more consistent cycle-to-cycle results and improved throughput on suitable parts. This flexibility makes it a practical option for manufacturers moving from early development into ongoing manufacturing requirements.

To request a quote, provide your part drawings, CAD files if available, material requirements, quantities, tolerances, and any finishing needs such as deburring, blasting, anodizing, or powder coating. Sharing target timelines and application details also helps refine the review. With complete information, the machining team can better assess complexity, process requirements, and the most efficient approach for your project.
